Stinky Slinky carrier

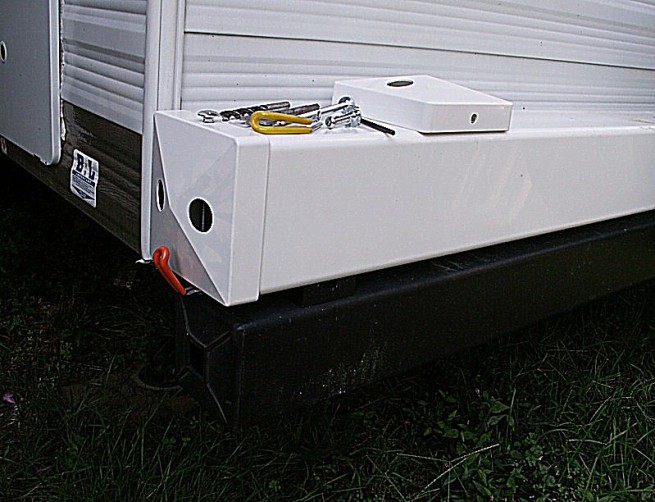

I recently replaced my "Stinky Slinky " with a Rhino Flex sewer hose and the large end doesn't fit my 4 inch bumper which I found out is 1/4 inch smaller than some other 4 inch bumpers. After seeing the excellent carriers by John and Kitty I finally settled on using 5 inch plastic fence post from Home Depot. Lowes shows a 4 3/4 inch post on their website but didn't have any in stock. HD also had a nice looking post cap for the post, cheap.

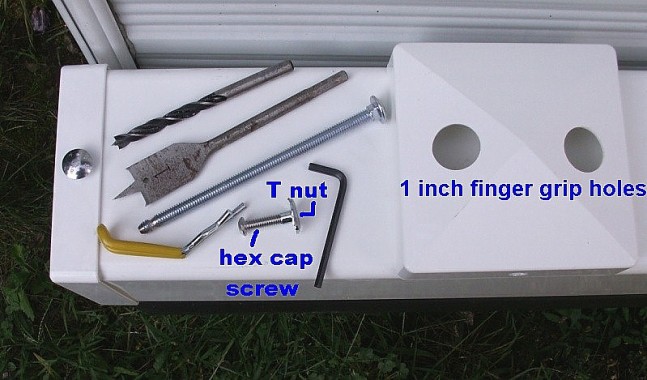

A 1 inch wood bit made a couple of nice finger holes in the cap and cut cleanly through the plastic. To hold the cap in place I used a 5/16 by 6 inch carriage bolt. I used a grinding wheel to put a bevel on the end to make it easier to drop in the slot and ground a ring on the bolt to hold a "hitch pin clip". The hitch pin clip shown here is an "Ergo Clip", it was on clearence at Lowes. I think a wooden spring clip clothes pin would work too. The 5/16 woodworking bit made a clean cut in the plastic for the bolt.

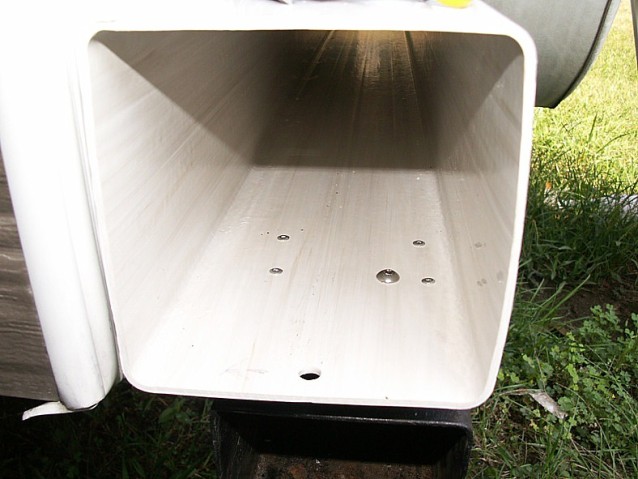

I played with a few ideas to hold it to the bumper and knew I needed to raise it to clear the u-bolts that hold the spare to the bumper. I attached a 3/4 inch thick block to the post, near the ends, with pop rivets thinking I could tie it to the bumper. After I did that I decided to use a T-bolt and 1/4 inch hex cap screw through the post and bumper. That required a 5/15 hole in the bumper and a 1/4 inch hole in the wood block and post. It holds everything secure and doesn't intrude in either the plastic post or the metal bumper and makes for easy removal for cleaning the back of the camper.




I have a collapsible carrier for the sewer hose when set up but also carry a few pieces of thin wall PVC sewer pipe, cut in half, for longer runs. They make a nice slide out tray for the hose and fit nicely in the 5 inch fence post.

__________________

__________________

Gene & DW Ginny
2002 Sunline T-2363
2008 Toyota 4-runner 4wd 4.7L V-8
Reese Dual Cam straightline - P3 Brake controller
Gene is offline   Reply With Quote
Old 09-01-2010, 09:30 PM   #2
Moderator

JohnB's Avatar

Join Date: Nov 2006
Location: Ohio
Posts: 9,950
SUN #89
JohnB is on a distinguished road
Gene

Very nice. Very nice indead. Thanks for sharing. Your pics are GREAT!!!

A 5" sq, h'mm that's good. I'll tuck that away for a future mod of something.

John
__________________

__________________
Current Sunlines: 2004 T310SR, 2004 T1950, 2004 T2475, 2007 T2499
Prior Sunlines: 2004 T2499 - Fern Blue
2005 Ford F350 Lariat, 6.8L V10 W/ 4.10 rear axle, CC, Short Bed, SRW. Reese HP trunnion bar hitch W/ HP DC

Google Custom Search For Sunline Owners Club
JohnB is offline   Reply With Quote
Old 09-02-2010, 07:34 AM   #3
Moderator Emeritus

kanyonkitty's Avatar

Join Date: Aug 2006
Location: West Virginia
Posts: 2,289
SUN #17
kanyonkitty is an unknown quantity at this point
Great job Gene,

This site is amazing, when someone thinks of a neat, useful gizmo and it gets posted here, it seems that there is always another way to mod or improve it.

Gotta love this site and all the wonderful, handy, creative people that are members.

Kitty
__________________
Sunny #18 2003 F-344SR #8157
Sunny #19 1997 T-2653 #5485
1999 Ford F350XLT DRW Crew Cab, Long bed 7.3 PSD
2002 VW Jetta TDI.. AKA: Kitty's Kruiser
kanyonkitty is offline   Reply With Quote
Old 09-02-2010, 05:04 PM   #4
Senior Member

Poppy & Nana's Avatar

Join Date: Nov 2006
Location: New York
Posts: 2,907
SUN #93
Poppy & Nana is an unknown quantity at this point
Quote:
Originally Posted by kanyonkitty View Post
Great job Gene,

This site is amazing, when someone thinks of a neat, useful gizmo and it gets posted here, it seems that there is always another way to mod or improve it.

Gotta love this site and all the wonderful, handy, creative people that are members.

Kitty
I'll second that!!!!
__________________
Kathy & Leo SUN 093
Central Adirondacks of New York
2013 Rubicon 2900 Toy Hauler
We loved our 2007 T-2499
2010 Ford F-350 4x4 Lariat Super Crew Dually Diesel
Poppy & Nana is offline   Reply With Quote
Old 09-02-2010, 05:08 PM   #5
Senior Member

Gene's Avatar

Join Date: Jan 2009
Location: Rhode Island
Posts: 1,515
SUN #768
Gene is an unknown quantity at this point
Quote:
Originally Posted by kanyonkitty View Post
....
Gotta love this site and all the wonderful, handy, creative people that are members.

Kitty
It sure is a great site. I got that fence post idea from the pictures you posted. It is nice having a place to steal ideas .... errr ... Share ideas.
__________________

Gene & DW Ginny
2002 Sunline T-2363
2008 Toyota 4-runner 4wd 4.7L V-8
Reese Dual Cam straightline - P3 Brake controller
Gene is offline   Reply With Quote
Old 09-02-2010, 06:39 PM   #6
Moderator Emeritus

kanyonkitty's Avatar

Join Date: Aug 2006
Location: West Virginia
Posts: 2,289
SUN #17
kanyonkitty is an unknown quantity at this point
No "stealing" involved at all. I post things that I do so others can see my projects and hopefully I have created something that is useful so others might be able to use/improve it too.

Also, just a reminder that the "projects" that I have posted about were done totally by me, unless it has been done since last August 'til now. Plus, you also have to remember that I don't have a "JohnB" workshop in my yard, just some of the basic power tools.


Just the other day I took the hanging closet next to the bathroom sink and installed 2 shelves. The closet will serve a much more useful purpose as a linen closet. It also now houses the shop vac that we keep on board. I have pictures, just need to get them posted.


OOPS, I am "post stealing" I better shut up


Kitty
__________________
Sunny #18 2003 F-344SR #8157
Sunny #19 1997 T-2653 #5485
1999 Ford F350XLT DRW Crew Cab, Long bed 7.3 PSD
2002 VW Jetta TDI.. AKA: Kitty's Kruiser
kanyonkitty is offline   Reply With Quote
Old 09-02-2010, 09:51 PM   #7
Moderator

JohnB's Avatar

Join Date: Nov 2006
Location: Ohio
Posts: 9,950
SUN #89
JohnB is on a distinguished road
Oh yes!!!! That Miss Kitty is a mod Queen second to none and has tackled some real complex mod’s I might add. I have seen here traveling work shop of tools and she has me beat in the mobile arena 10# to 1… My gosh the stuff just kept coming out of that cargo hole….. I think she has the stuff to do a complete engine over haul in there…. And that was when she had the T2499…

And now she has a 5er….

Yes the pics and sharing on this site are the best. Even if you do not use the mod exactly, it sparks other ideas. I have borrowed many a Kitty mod before. And now I have a Gene mod tucked away for a lonely summer day.
__________________
Current Sunlines: 2004 T310SR, 2004 T1950, 2004 T2475, 2007 T2499
Prior Sunlines: 2004 T2499 - Fern Blue
2005 Ford F350 Lariat, 6.8L V10 W/ 4.10 rear axle, CC, Short Bed, SRW. Reese HP trunnion bar hitch W/ HP DC

Google Custom Search For Sunline Owners Club
JohnB is offline   Reply With Quote
Old 09-03-2010, 07:46 AM   #8
Senior Member

rebellious78's Avatar

Join Date: Nov 2006
Location: West Virginia
Posts: 446
SUN #96
rebellious78
That looks like a good way to carry everything. It sure beats keeping it in a plastic box.
__________________

David & Mary Ann
2018 Ford F350 Dually 6.7L Powerstroke
2006 Sunline Solaris T-264-SR
2012 Palomino Bronco B1500LB
rebellious78 is offline   Reply With Quote
Old 05-23-2012, 06:48 PM   #9
Junior Member

Join Date: May 2012
Location: Maine
Posts: 3
SUN #3682
Donald Rideo is an unknown quantity at this point
Sewer pipe storage

Great idea, thanks so much for the great info. What a great site, I will be using it often I'm sure. Don
__________________
Donald Rideo is offline   Reply With Quote
Old 05-25-2012, 12:08 AM   #10
Moderator

Sunline Fan's Avatar

Join Date: Dec 2006
Location: Michigan
Posts: 5,981
SUN #123
Sunline Fan is an unknown quantity at this point
Quote:
Originally Posted by JohnB View Post
Oh yes!!!! That Miss Kitty is a mod Queen second to none and has tackled some real complex mod’s I might add. I have seen here traveling work shop of tools and she has me beat in the mobile arena 10# to 1… My gosh the stuff just kept coming out of that cargo hole….. I think she has the stuff to do a complete engine over haul in there…. And that was when she had the T2499…
AND...on that rare occasion, she has to farm out the mod work. I remember that one time when she had to recruit five guys to get an awning cradle installed in an afternoon. Now there's Gary, who can do that much in an afternoon by himself!
__________________
2007 T-286SR Cherry/Granola, #6236, original owner, current mileage: 9467.8 (as of 5/26/19)
1997 T-2653 Blue Denim, #5471
1979 12 1/2' MC, Beige & Avocado, #4639
Past Sunlines: '97 T-2653 #5089, '94 T-2251, '86 T-1550, '94 T-2363, '98 T-270SR
Sunline Fan is offline   Reply With Quote
Old 05-25-2012, 07:16 AM   #11
Senior Member

Mellow Yellow's Avatar

Join Date: Jan 2012
Location: Vermont
Posts: 798
SUN #3259
Mellow Yellow is an unknown quantity at this point
That is very neat ! Thanks for sharing.

Adding my thanks to all of the great SOC members for the time spent sharing their ideas and taking the time to post pictures of their projects. I don't know what Tom and I would have done without this site.
__________________
Tom and Debbie
2018 Dodge Ram 3500 HD w/Hemi (The Poppie Mobile)
1972 Chevy K10 Custom 4 x4 - (Mellow Yellow) Orig. owners !
2001 Sunline Solaris T-250 SR

Mellow Yellow is online now   Reply With Quote
Old 06-07-2012, 04:28 PM   #12
Senior Member

frank_a's Avatar

Join Date: Mar 2011
Location: New York
Posts: 460
SUN #1953
frank_a is an unknown quantity at this point
Is this 5" fencepost an outside dimension? If it's inside, no way it would fit on my T-1550. I would like to do the exact same thing, but I have maybe 4 3/4 inches between the trailer and spare tire carrier. And that would be a squeeze! I'll keep a tape measure in the pick-up and do some checking. Very cool idea!

Frank
__________________
2009 GMC Canyon with factory tow package & new fangled brake controller
2008 Subaru Outback
1983 Sunline T-1550

Image to come as soon as I figure out how to flatten a pic!
frank_a is offline   Reply With Quote
Old 06-07-2012, 05:45 PM   #13
Senior Member

Gene's Avatar

Join Date: Jan 2009
Location: Rhode Island
Posts: 1,515
SUN #768
Gene is an unknown quantity at this point
Yes, mine measures 5" outside dimension. I noticed on the Lowes website they have a 4 3/4" post and a 4" post.

I have a 6" space between my spare tire upright and the back of the coach so it fits well.
__________________

Gene & DW Ginny
2002 Sunline T-2363
2008 Toyota 4-runner 4wd 4.7L V-8
Reese Dual Cam straightline - P3 Brake controller
Gene is offline   Reply With Quote
Old 06-07-2012, 05:55 PM   #14
Senior Member

frank_a's Avatar

Join Date: Mar 2011
Location: New York
Posts: 460
SUN #1953
frank_a is an unknown quantity at this point
4 3/4 might do it Gene. If I compress the back of the trailer enough, it would sure be a good tight fit! I just threw the measuring tape in the pickup and will check into dimensions over the next few days. Got my hands full!

Thanks,

Frank
