Bent front frame cross-member on '07 Solaris T-2499

I have a problem with the front frame cross-member. The unit has been towed for about 10K miles, but on the last trip I noticed the bent cross-member. Last year the battery supports bent and I just thought that they were just not sturdy enough. It now appears that the outer front corners of the front frame cross-member are sagging which places a twist on the tongue frame members and the center section of the front cross-member. The front center section has bowed backward and the battery supports are bowed. Is there anyone else out there who has had a similar problem, and if so, how did they repair the problem?

Thanks in advance for any help you can give.

clarkldc
__________________

__________________
clarkldc is offline   Reply With Quote
Old 07-06-2008, 07:35 PM   #2
Moderator

JohnB's Avatar

Join Date: Nov 2006
Location: Ohio
Posts: 10,043
SUN #89
JohnB is on a distinguished road
Clarkldc

First off welcome to the forum. A great place to share all kinds of stuff.

Now to your problem. I have a 2004, T2499 that has the older style frame. 5" channel iron frame and 5" channel iron A frame tongue. And I have had no issues and I have a heavy tongue weight on that camper.

HOWEVER, The timing of your post is sort of unbelievable. I am in contact now with a fellow camping buddy owning a 2006, T2499 having frame issues. His battery supports are bent up and the A frame is bending. His is a 2006 model made in April of 2005. I was trying to see if I can get permission from him to post pic’s of his problem and the fix that was just recently done. I do not want to post them until I get his approval. I wanted to put a heads up post to others out there with the newer frame style T2499 to have them check theirs to see if it is a common problem and what is the common denominator.

Here is what I know so far. In 2005, Sunline and Lipert changed the frame from a 5” channel iron main frame with a 5” channel iron A frame tongue to a 6” I beam with a 4” channel iron A frame. I really do not know why it changed other then it was added along with a numbers of other 2005 upgrades to the T2499. I’m assuming the 6” I beam frame was to make the main frame stronger as mine does have flex to it on the main frame, but all camper have flex on the main frame to some degree. So do not think all flex is bad. Just when it goes to far.

There are a number of T2499 owners on this site and we can maybe figure out the common thing that some have had failures with. You are now the 3rd person I know of with the issue on the newer style frame.

Back to yours.

1. Can you confirm you have the 6” I beam frame with 4” channel iron A frame tongue?

2. Do you know your loaded actual tongue weight?

3. What size WD bars are you using and what brand/style WD hitch and sway control?

4. What dealer did you buy your T2499 from?

5. What is the date of Manufacture? It is listed on the VIN sticker on the front left of the TT.

6. Any chance you can take some pic's of your issue?

I do not want to speculate to the root cause of the problem, more to help gather more info right now.

Hopefully this helps you and others.

Thanks

John
__________________

__________________
Current Sunlines: 2004 T310SR, 2004 T1950, 2004 T2475, 2007 T2499, 2004 T317SR
Prior Sunlines: 2004 T2499 - Fern Blue
2005 Ford F350 Lariat, 6.8L V10 W/ 4.10 rear axle, CC, Short Bed, SRW. Reese HP trunnion bar hitch W/ HP DC

Google Custom Search For Sunline Owners Club
JohnB is online now   Reply With Quote
Old 07-07-2008, 07:35 AM   #3
Moderator

Tweety's Avatar

Join Date: Dec 2006
Location: Pennsylvania
Posts: 2,262
SUN #128
Tweety
We have the same frame and crossmembers on our 2753. Does this problem seem to be unique to the 2499? and if so, can you speculate as to why? So far our welds look fine and everything looks flat.
__________________
Pam
Lance 1475 "Snoopy"
2012 GMC Sierra 3500HD 4x4 D/A
2012 Arctic Fox 30U, SUNLINES - 2006 2753 "Tweety", 2007 QUE "QUEtSE", 2364, 1660
Tweety is offline   Reply With Quote
Old 07-07-2008, 07:13 PM   #4
Senior Member

henryj's Avatar

Join Date: May 2008
Location: Ontario
Posts: 637
SUN #597
henryj
Not Good

Our 2499 was built in Jan. 05 and it has the 6" I beam and 4" channel tongue, so this is some cause for concern. So far everything looks nice and straight and we have towed for more than 10,000 mi. Since this is the frame on newer 2499s, maybe it's a more immediate problem and we will escape.

John, or Clarkldc, I hope you can post pictures as I'd really like to see what this looks like.

Funny thing is when we bought the 2499, after several years of RV shows, I remember thinking the A frame looked a little small for a trailer that size.

Henry
__________________
2019 F150 3.5L Max Tow
2015 Silverado 1500 NHT
2014 Arctic Fox 22G
2005 Sunline T-2499
henryj is offline   Reply With Quote
Old 07-07-2008, 08:36 PM   #5
Moderator

JohnB's Avatar

Join Date: Nov 2006
Location: Ohio
Posts: 10,043
SUN #89
JohnB is on a distinguished road
Pam

I do not want to alarm everyone we have an issue, this is more of a heads up to look and right now this is only on the 2005 and newer T2499’s that we have any cases of this. That T2499 floor plan loads different then your Tweety. And after measuring your tongue at the M & G, you are not in the heavy league.

Henry

I have received some confirmation back for my buddy that it is OK to post some pics of what his issue was to help the general cause of us fellow Sunline owners. I’ll have them up soon. This buddy and Clarkldc may be the closest we have to actual data/issues. Henry I know you are a “into it” type of camper and your good fortune/skill may help explain some why you are not having issues and we have on the other 2.

Can you fill in these questions:

1.Do you know your loaded actual tongue weight?

2. What size WD bars are you using and what brand/style WD hitch and sway control?

3. What dealer did you buy your T2499 from?

4. What is the date of Manufacture? It is listed on the VIN sticker on the front left of the TT.

You said you had the 6” I beam and the 4” tongue already. Starting with this little bit of data we might me able to pull together some commonalities.

More soon.

John
__________________
Current Sunlines: 2004 T310SR, 2004 T1950, 2004 T2475, 2007 T2499, 2004 T317SR
Prior Sunlines: 2004 T2499 - Fern Blue
2005 Ford F350 Lariat, 6.8L V10 W/ 4.10 rear axle, CC, Short Bed, SRW. Reese HP trunnion bar hitch W/ HP DC

Google Custom Search For Sunline Owners Club
JohnB is online now   Reply With Quote
Old 07-08-2008, 04:09 PM   #6
Senior Member

henryj's Avatar

Join Date: May 2008
Location: Ontario
Posts: 637
SUN #597
henryj
John, here are the numbers for my still straight 2499 that has been towed at least 10,000 mi.:

1. Loaded TW (I don't carry water) 900 lb.

2. Hitch: Equal-i-zer with 1000 lb. bars

3. Dealer: Coachouse RV, Shelburne, ON; delivery Sep. 06

4. Mfd: Jan. 05

I hope this helps with a small piece of the puzzle. Given the number of newer 2499s in Sunline Club, this is still a fairly rare occurrence.

Henry
__________________
2019 F150 3.5L Max Tow
2015 Silverado 1500 NHT
2014 Arctic Fox 22G
2005 Sunline T-2499
henryj is offline   Reply With Quote
Old 07-08-2008, 04:51 PM   #7
Senior Member

Join Date: Aug 2007
Location: New York
Posts: 404
SUN #385
Hematite
Our 2499 crossmember was straight until last weekend. Now it, too, is bent in the center. Upon looking at the construction of the frame, A frame, and crossmember area it wouldn't require a degree to see that this area looks pretty weak. The crossmember is the only crossbrace for the entire front of the unit. It's not made of a very substantial gauge of steel, at least in my opinion. There is a lot of weight and twisting forces at work here.
Question is: Will Lippert step up to correct the problem? My unit was built in September 2005 and I'm using a Reese HPDC hitch with 1200# bars.





The top photo shows the center crossmember bent and the lower shows the bend from the top. I not real happy right about now.
__________________
Rick


2007 Ford F150 FX4 Supercab 4x4, 5.4 FFV engine, 3.73LS.
Hematite is offline   Reply With Quote
Old 07-08-2008, 09:57 PM   #8
Moderator

JohnB's Avatar

Join Date: Nov 2006
Location: Ohio
Posts: 10,043
SUN #89
JohnB is on a distinguished road
Fellow T2499 Friends

Here is the info and pic’s from my one buddy who I have been in contact with.

This is the newer 6” I beam frame with 4” channel iron A frame tongue construction.

He does not know his tongue weight.

The date of Manufacture was April 2005. Ultra Model. (Nice TT)

He was using a 750# Reese WD hitch using a friction sway bar sway control. Actually light for that floor plan but that is what he had.

He believes this may have happened going down a rough patch of I78 but is not exactly sure.

Here are the pics

Note the bent up battery support angles. This seems to indicate that the A frame twisted to cause a bend like this.


Here is a bottom shot. It is bent in by the middle where the battery disconnect switch is. Also note it cracks the frame header on the bottom where it attaches to the A from tongue.


Here is a pic of the header plate cracks and where it looks like it pulled away from the channel iron. The focus is off so I cannot exactly tell. The rusted area is I’m sure is the lower flange cracked.

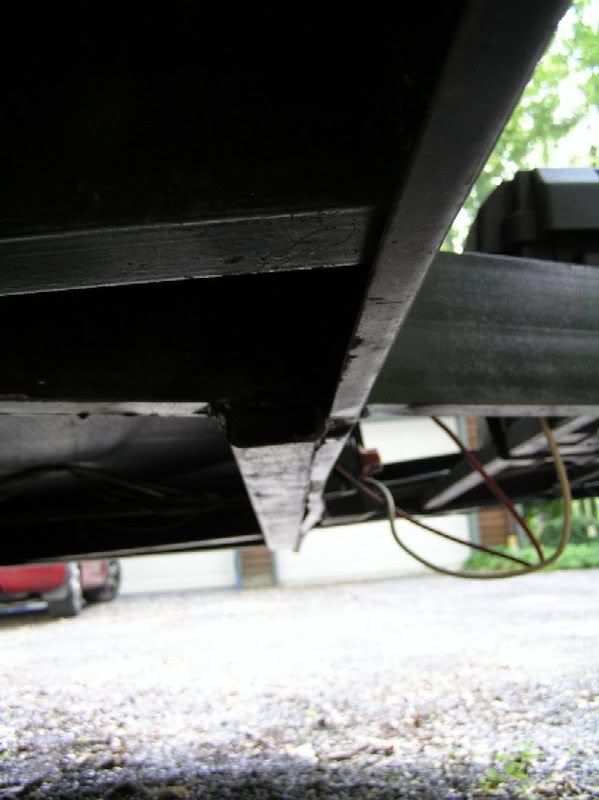

And here is the correction that was added to his unit. A piece is 1” x 2” by 52” long structural tubing was added across the A frame. He did have a frame shop weld it back together before the addition of the tube but it had broke on the first strip out withut the addition of the extra reinforcement. So this additional fix is the 2nd fix. They traveled 600 plus miles since and to date have not had any more issues.


This camper buddy tried to connect with Lippert on the problem but did not get thru to have someone actually get back to him. He did get resolution with his TT dealer with the 2nd fix.


I’m traveling for work right now and I do not have any pictures of my 2004, T2499 using the older style frame with me to compare this to. When I’m home next Wednesday I take some for comparisons.

Rick your failure looks very similar to this. Can you take some more pic’s of yours to show how the frame is made up and how the A frame is tied to the main frame? Close and far away pic showing the setup. Also if you can measure the frame header, width (height), the lower flange width and the thickness?

From first glance it looks like the A frame took a twisting action from WD when going into a turn. When the TV turns and the TV or TT are at a slight angle to each other, the inside WD bar is taking all the load on that one side. See here on this one pic of mine showing this action.



The Reese DC or the Equal-I-zer, both good hitches, can concentrate the load on one side as they do not have chains on both WD bars per say. However in the pics of the failure above, my camping buddy did not have the DC or the Equal-I-zer, just a plain 750# WD hitch with chains. So both sides of the A frame had load on them just the inside of a turn would have more.

The frame header buckling I can only piece together to come from this A frame twisting action from what I can see right now. However my camping buddy thinks it “might” have happened in one hard bounce on the highway. I do not know for sure but 1 large inline drop action I cannot see how it will create that buckle in the frame header.

Anyone else with info, please share what you can so we can piece this together more to help others. It appears to be affecting the 2005 to the 2007 models. From Clarkldc, Ricks and my buds years TT.

Hope this helps

John
__________________
Current Sunlines: 2004 T310SR, 2004 T1950, 2004 T2475, 2007 T2499, 2004 T317SR
Prior Sunlines: 2004 T2499 - Fern Blue
2005 Ford F350 Lariat, 6.8L V10 W/ 4.10 rear axle, CC, Short Bed, SRW. Reese HP trunnion bar hitch W/ HP DC

Google Custom Search For Sunline Owners Club
JohnB is online now   Reply With Quote
Old 07-09-2008, 06:47 AM   #9
Moderator

Tweety's Avatar

Join Date: Dec 2006
Location: Pennsylvania
Posts: 2,262
SUN #128
Tweety
So are you saying it may be at least partially a function of the type of WD hitch? heavy tongue weight? and sharp cornering? Those of us following Pat & Cindy know that their 2499 has been on some REALLY bad roads. Have they had a problem? We took Tweety (although I know it's a 2753 and a light tongue weight unit) around some steep hairpins (probably 8 of them) where the hitch was making some pretty interesting noises, while the back was riding on the dolly wheels. I guess it's a good sign that she's still straight after that? I also guess it wouldn't hurt to have that extra piece welded on as a precaution...especially for people with the 2499.
__________________
Pam
Lance 1475 "Snoopy"
2012 GMC Sierra 3500HD 4x4 D/A
2012 Arctic Fox 30U, SUNLINES - 2006 2753 "Tweety", 2007 QUE "QUEtSE", 2364, 1660
Tweety is offline   Reply With Quote
Old 07-09-2008, 07:51 AM   #10
Senior Member

Join Date: Aug 2007
Location: New York
Posts: 404
SUN #385
Hematite
JohnB: Yes, later today, barring rain, I will take detailed pics and measurements.

I'm convinced that my crossmember buckling was not the result of a bad bump. When the Sunline was being transported to my house it took quite a bump on the NYS Thruway and nothing like his occured. This unit has Soft Ride suspension so shock is somewhat mitigated.

I'm also convinced that a turn, while in a non level situation, is what caused the crossmember to buckle. That is, a situation with the front of the truck uphill and the front of the Sunline headed downhill at the same time.

I notice that the other Sunline actually broke the crossmember metal. In my situation, the metal is only bent. My observation of the whole situation is that there is inadequate support to the A frame to prevent twisting and that the crossmember is also inadequate to tie the A frame and main frame together. It is simply a stamped piece of steel. Not a lightweight stamping but not a real structural weight piece either.

My thought is, once I have a body shop use a porta power to straighten the "crossmember", I'm going to have a heavy tube or angle iron back it up and have 2" x 1/4" steel bars welded on top and bottom of the A frame. 2 on top and 2 on bottom. That should completely stabilize the A frame to prevent twisting forces.
__________________
Rick


2007 Ford F150 FX4 Supercab 4x4, 5.4 FFV engine, 3.73LS.
Hematite is offline   Reply With Quote
Old 07-09-2008, 08:44 AM   #11
Senior Member

Join Date: Aug 2007
Location: New York
Posts: 404
SUN #385
Hematite
Ok, it looks like immediate rain so I went out quick and took some pics and measurements.


This is where the 4" channel meets the 6" I beam. Not too clear in the photo but I imagine pretty standard joining.


This is another shot of the back of the "crossmember". The larger 1 3/4" top flange is evident as well as the tiny 1/2" lower flange. The metal thickness is .1" . Basically, the virtually useless 1/2" flange yielded (not surprising). As I said, I'm not an engineer but I don't think you have to be one to realize that this piece of metal is not going to be able to stop the A frame from twisting...for long.


More of a side view.

I don't think it was a mistake to go to the 6" I beam but I do think it was a mistake to go with a 4" c channel without adequate reinforcement.
__________________
Rick


2007 Ford F150 FX4 Supercab 4x4, 5.4 FFV engine, 3.73LS.
Hematite is offline   Reply With Quote
Old 07-09-2008, 09:03 AM   #12
Senior Member

Join Date: Aug 2007
Location: New York
Posts: 404
SUN #385
Hematite
After looking at the 2 different Sunline pics, I can't help but think that if a piece of metal is bent repeatedly it breaks. Makes me think that the other Sunline probably had been subjected to repeated flexing in the area of the break before the break took place.

Except for the first post, I probably would not have noticed this until it broke. Before I took the Sunline out (my first trip as the current owner) I know for a fact that the crossmember WAS straight. It did happen on this maiden voyage and there were absolutely no bad bumps, etc.. Twists and turns, yes.

It is strange, though, that I was blaming the bend in the crossmember on the Reese HPDC system with the 1200 bars for maybe twisting the A frame. The other Sunline had a setup that I would think that would not cause a problem.

This Sunline has about 2600 miles on the road. I don't know the answer but I hope we can find out?
__________________
Rick


2007 Ford F150 FX4 Supercab 4x4, 5.4 FFV engine, 3.73LS.
Hematite is offline   Reply With Quote
Old 07-09-2008, 10:01 AM   #13
Member

clarkldc's Avatar

Join Date: Jul 2008
Posts: 94
SUN #646
clarkldc
RE: Bent frame front cross-member '07 Sunline Solaris T2499

Fellow Sunline T2499 Owners,

Let me pass on the following answers.

1. I have the 6" I beam frame with the 4" C-channel A frame tongue.

2. I do not know the loaded actual tongue weight, but let me say that since I have an F250 SD Diesel with a long bed I put much of the weight in the truck bed to avoid adding too much to the trailer.

3. I have a Blue OX SwayPro BXW1000 WD hitch and sway control designed for 1000 lbs. maximum tongue weight.

4. I purchased the trailer from Brooks Ramsey RV in White Marsh, MD.

5. The date of the final inspection was May 4, 2006. VIN number is 1LC2S2L267D267078.

6. I will add some ugly pictures of the front frame cross-member. I have already removed the propane tanks, batteries, and the battery disconnect switch, and the junction box (from the cross-member)in preparation for welding repair.

Let me add that I have spoken to Mr. Chuck Bell at Lippert Components, Inc. He told me that indeed my frame had been manufactured by Lippert of Denver, PA based on the VIN number. He said that Sunline developed the specifications for the frame and Lippert built it to their specs. He also stated that Sunline had specified the use of thinner guage front cross-member from 10 GA to 12 GA and that the cross-member was hot formed from sheet steel. He told me that they were trying to make right the problem we are having, but I do not know if, or when this will take place. Some of the repairs in the past were the use of the 1"x2" tube channel steel welded to the cross-member to stiffen it. I am awaiting a return phone call from him as to what Lippert might do for me. I think that the damage to my frame is beyond this simple fix and may require the replacement of this cross-member with at least 6" C-channel.

I'll try to add the pictures in my next post.
__________________
clarkldc is offline   Reply With Quote
Old 07-09-2008, 12:45 PM   #14
Senior Member

henryj's Avatar

Join Date: May 2008
Location: Ontario
Posts: 637
SUN #597
henryj
2499 Frame Flex

After seeing Rick's picture last night I headed out this morning for a closer look... and I do have the beginnings of this frame damage. Some photos first and then I'll sum up with my take on the problem.

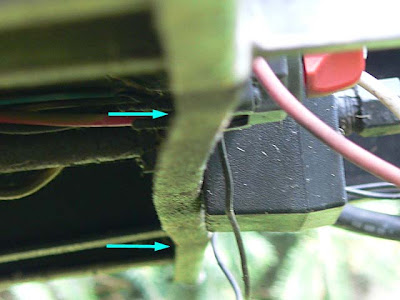

This is the early stage of the problem illustrated by John and Rick. Although it is not clear in the photo, the front cross member is bending in the area exactly between the legs of the A-frame.


This view is to the rear of one leg of the A-frame where it is welded to the main I-frame. Note the 2" gap between the top of the A-frame and the bottom of the floor. This weld is just about all that is carrying the weight of the tongue.


A matching "C" is cut into the front frame cross member or header to allow the C-channel of the A-frame to pass through and become the tongue of the trailer. Note the 2" gap at the top arrow where that thin steel (plus the weld in the previous photo) is all that carries the weight of the tongue. At the bottom arrow, the A-frame is not even welded to the cross member.


From the outside, note again the crude "C" cut into the header to allow the A-frame C-channel to pass through. This should have been welded in and IMHO the cut at the bottom seriously weakens the already flimsy front cross member.


Note the size of the coupler compared to the A-frame. IMHO this A-frame should have been 2" taller for a trailer of this weight.


I'm not surprised Rick didn't see this damage happening. This initial stage is subtle and I could easily convince myself that mine is due to sloppy workmanship and in fact wouldn't even have noticed it without lying on the ground and looking across the full width--after having read this thread. I don't believe this kind of damage is caused by bumps, however big, in the road--they would have to blow out the tires first. Bump forces are transient and quickly dissipated over the entire structure of the TT and TV. I agree with John and Rick, this kind of damage is caused by strong long term, or repeated, twisting forces.

So why is Rick's so much worse after 2600 mi. than mine at 10,000 mi.? If it really is frame flex, that will happen every time in the transition from street to driveway or camping on uneven ground. My trailer has only left my yard maybe half a dozen times in two years. And on our long trips we tend to stay in fairly smooth level RV parks too. I'm wondering now if the wd bars should be unhooked before making the really tight driveway and campsite moves. I could handle that on arrival, but it would be a major pain to have everything loaded up, pull out and then stop on the road to hook up the wd bars. I also think a fair amount of additional force and flex is introduced when cranking up the rear end of the truck to hook and unhook the wd bars. A weekend camper would also be doing this much more often than a long distance traveller.

The damage we're describing in this thread is not caused by any operator error or anything else out of the ordinary. It is caused by poor design. The A-frame is welded on the inside end and supported by a thin piece of metal sheet with only a 2" height to carry the full tongue weight. There is no additional support or bracing between the A-frame and I-frame and the A-frame doesn't even contact the floor where it would gain considerable extra support. It actually looks like the A-frame was added as an afterthought rather than properly integrated with the main frame. Like Rick said, this isn't rocket science, I've seen wheelbarrows built better than this.

I have been very happy with my Sunline and appreciate the enthusiasm of many here who have never owned anything else. In two years of ownership I have adjusted the exterior door latches and that is it--and the refrig. recall. But now both Sunline and my dealer are out of business and I should still have one year of warranty left. While most camper components are generic this is a situation where we really need the factory. But then my previous Aliner had a rotten floor which was a design flaw and the factory didn't stand behind it either. Even so, there's nothing like a rotten floor or broken frame to sap the enthusiasm. I did google "Lippert frame" and 8 out of 9 links on the first page alone dealt with bad and broken Lippert frames on various RVs, but I can't see them doing anything for us without the factory behind us. I wonder if this should be reported to NHTSA?

If I had some short trips scheduled, I'd take some measurements and see if the situation got worse, but our next "outing" is a 5 week trip to the OR coast and back. My brother, who's a retired Cat engineer, is coming for a visit next week so I'll get his professional opinion before I do anything.

Henry

Clark, I just saw your post too. Thanks for that info on Lippert.
__________________
2019 F150 3.5L Max Tow
2015 Silverado 1500 NHT
2014 Arctic Fox 22G
2005 Sunline T-2499
henryj is offline   Reply With Quote
Old 07-09-2008, 03:05 PM   #15
Senior Member

Join Date: Aug 2007
Location: New York
Posts: 404
SUN #385
Hematite
Henry,

Thank you very much for taking the time to check your 2499. Actually, now that I see your crossmember, I'm pretty sure mine looked like that too before it actually kinked. I also thought it was OK and thought it was sloppy workmanship. I had to bend the rear battery crossbar down when I first got the Sunline because I thought it was poorly positioned before welding. Now looking at the other 2499 that broke the crossmember, I see that frame also heaved up the battery crossbar.

This is my first travel trailer and I did a LOT of research before I bought it. I studied all I could and asked many questions because I wanted to do everything right. I checked and double checked everything so that everything would go trouble free. I take one trip with it and I have a bent crossmember. I'm kind of devastated about this. I really want to try to overcome this problem because I really love the 2499. I'm going to try to be positive and overcome this setback. I'm sure that working together we can do it!
__________________
Rick


2007 Ford F150 FX4 Supercab 4x4, 5.4 FFV engine, 3.73LS.
Hematite is offline   Reply With Quote
Old 07-09-2008, 03:17 PM   #16
Senior Member

Join Date: Aug 2007
Location: New York
Posts: 404
SUN #385
Hematite
Henry,

I gave it some more thought and I think that I know why the kink in the crossmember took place on this Sunline. There was the problem already developing in the crossmember and the site that I was on was pretty uneven. I have a feeling that the site uneveness combined with the developing weakness in the crossmember may have caused the kink.

There is no reason for the weak design of that crossmember. I didn't realize that there is that gap above the A frame until you pointed it out! Wow, that is definitely not cool!!! I believe that the design is destined to fail, it's just going to take the certain circumstances to bring it about. Yes, a 4 inch A frame and a 6 inch main frame not a good combination!
__________________
Rick


2007 Ford F150 FX4 Supercab 4x4, 5.4 FFV engine, 3.73LS.
Hematite is offline   Reply With Quote
Old 07-09-2008, 07:44 PM   #17
Junior Member

Join Date: Jul 2008
Posts: 20
SUN #650
bink68 is an unknown quantity at this point
Hi,

I'm John's buddy and owner of the 2499 where the frame actually fractured in the pictures earlier in this thread. Although I suspect that it was the sudden dip on I-78 East near Rt 100 that actually bent and broke it, I have no proof other than I didn't notice the problem the night before when we stopped in Virginia and that it was broken 450 miles later when I reached home.

I also know that my unit has had a fair amount of mileage on the rough pavement of Eastern Pennsylvania and on I-95 down to the Floridia line. If any of you have done that route, you'll know what I'm talking about with the pavement in South Carolina.

I do remember looking at the frame earlier in the year and noticing that the header didn't appear to be flat where it passed under the "A" frame. So the theory that this happens over time may be valid.

I can tell that the frame is much stronger with the 1 x 2 box channel reinforcement because the weight on both spring bars is now more even than it was prior to its addition.

I hope that all of this helps other owners of this particular unit. If I had known about the problem earlier, I surely would have had the reinforcement added and avoided the whole situation. It's still a great unit.
__________________
bink68 is offline   Reply With Quote
Old 07-09-2008, 09:35 PM   #18
Senior Member

Join Date: Aug 2007
Location: New York
Posts: 404
SUN #385
Hematite
bink68,

Thanks for having your info posted by JohnB. In a situation like this the more info the better.

You may be right that the bad bump you hit was the final straw, as it were, to break the crosspiece. The damage to the crosspiece seems to accumulate which makes me think that it does flex in use.

I'm glad that your Sunline is now back in good form and, yes, it really is a great unit.
__________________
Rick


2007 Ford F150 FX4 Supercab 4x4, 5.4 FFV engine, 3.73LS.
Hematite is offline   Reply With Quote
Old 07-10-2008, 12:27 AM   #19
Moderator

JohnB's Avatar

Join Date: Nov 2006
Location: Ohio
Posts: 10,043
SUN #89
JohnB is on a distinguished road
Hi Folks

I see we have a lot more activity here on this today which is good and shows how good a thing we have here on Sunline Club. With out Sunline being here, we are sort of self help now to point us where to look and then have your dealer follow thru or you take something on yourself.

I do know if Sunline was still here, they would be all over this with help. When you are in business to manufacture a product, things do despite the best efforts, go wrong. This may be one of them. This is fixable, even though we may not yet totally understand it all yet, but it is fixable.

I’m at a disadvantage this week being out of town and I can’t go run out to the camper and take some pics of the older 2004 T2499 frame and also my T310SR frame as it has some things to offer here as well.

To a few questions and some comments.

Quote:
Originally Posted by Tweety
So are you saying it may be at least partially a function of the type of WD hitch? heavy tongue weight? and sharp cornering? Those of us following Pat & Cindy know that their 2499 has been on some REALLY bad roads. Have they had a problem?
Pam, No, the type of WD hitch is not a cause of this from what I can see. What I was doing in my mind, and not saying it well in words, was analyzing where the forces are coming from and in which direction to create a header plate buckle like in Ricks, Bink68’s and now Henry’s camper. The type of hitch changes forces and the directions but bottom line, TT’s of this size have to be able to handle those forces. Turns change loads on a WD hitch and as such change the loads on the A frame. Again I was trying to show where “some” of the forces are coming from.

Now to Eman’s camper, mine and other T2499 models. We do not yet know all the facts but some things that are starting to sort of align. There are many T2499 models out there from 2005 to 2007. Right now, I only know of 5 that have had issues of some sort. 4 here on Sunline Club and 1 on RV.net.

The T2499 rear living room floor plan has the ability to load tongue heavy. A good deal of the storage is forward of the axle with not a lot behind the axle to unload it. It is not unique to the T2499, my T310SR has the same characteristics as well as any other brand rear living area camper. Once understood it can be kept in check.

We only know of 5 campers today with an issue, but the variables are many as the way we camp, the way WD is setup, the type of TV, where we camp are all different.

When I saw this, yes my first thought was Pat and Cindy’s camper. But they have something different too. Pat stated it in one of his recent posts he can tell the difference when his scooter is not on the back. It tows better. I suspect the bike and his rack are unloading tongue weight. This means less WD bar force to set the truck WD. This means less forces on the A frame. It is a wild thought but might have some merit to it. However I was hoping Pat would chime in here soon after looking at his as their travels are a test case to say the least….

Weighing tongues at the M & G showed me how varied peoples “stuff” was in the same floor plan in relation to tongue weight. Bink68 is using 750# WD bars with a full blown crack, Rick is using 1,200# bars and only a bend, so far. Point is Binks68’s 750# standard WD hitch is as basic as they come and the issue occurred so hitch type and size is not the issue. Each type and size may accelerate an underlying problem though.

Now to your moan and groans from the hitch. The Reese DC moans and groans in turns. This is normal for that type of hitch. The WD bars lifting on and off the cams creates high friction and when the bar slips a little bit coming off the cam in a turn it “pops” and make a load groan. This is all normal for that hitch.

Quote:
Originally Posted by Hematite
JohnB: Yes, later today, barring rain, I will take detailed pics and measurements.

I'm convinced that my crossmember buckling was not the result of a bad bump. When the Sunline was being transported to my house it took quite a bump on the NYS Thruway and nothing like his occured. This unit has Soft Ride suspension so shock is somewhat mitigated.

I'm also convinced that a turn, while in a non level situation, is what caused the crossmember to buckle. That is, a situation with the front of the truck uphill and the front of the Sunline headed downhill at the same time.

I notice that the other Sunline actually broke the crossmember metal. In my situation, the metal is only bent. My observation of the whole situation is that there is inadequate support to the A frame to prevent twisting and that the crossmember is also inadequate to tie the A frame and main frame together. It is simply a stamped piece of steel. Not a lightweight stamping but not a real structural weight piece either.

My thought is, once I have a body shop use a porta power to straighten the "crossmember", I'm going to have a heavy tube or angle iron back it up and have 2" x 1/4" steel bars welded on top and bottom of the A frame. 2 on top and 2 on bottom. That should completely stabilize the A frame to prevent twisting forces.
Rick

Thanks for the extra info. Yes at this point I can only conceive in my head that the A frame is twisting to create a header buckle like that and that twist would come from a turn. Your example is one of the best “perfect storms” for high forces on one side of the A frame. At least that I can think of right now.

What I have not yet figure out is why on Bink68’s fix they did not run the tube all the way to the main frame. They stopped at the A frame. Web width creates the main strength of a beam. In this case the 6” vertical direction of the header. The lower formed edge, ˝” helps prevents the web from buckling under load. I fully agree, 1 /2 does not add up. It is not providing a lot of structure. I’m still thinking on how the forces are acting on the A frame.
__________________
Current Sunlines: 2004 T310SR, 2004 T1950, 2004 T2475, 2007 T2499, 2004 T317SR
Prior Sunlines: 2004 T2499 - Fern Blue
2005 Ford F350 Lariat, 6.8L V10 W/ 4.10 rear axle, CC, Short Bed, SRW. Reese HP trunnion bar hitch W/ HP DC

Google Custom Search For Sunline Owners Club
JohnB is online now   Reply With Quote
Old 07-10-2008, 12:31 AM   #20
Moderator

JohnB's Avatar

Join Date: Nov 2006
Location: Ohio
Posts: 10,043
SUN #89
JohnB is on a distinguished road
Quote:
Originally Posted by clarkldc
Fellow Sunline T2499 Owners,

2. I do not know the loaded actual tongue weight, but let me say that since I have an F250 SD Diesel with a long bed I put much of the weight in the truck bed to avoid adding too much to the trailer.

3. I have a Blue OX SwayPro BXW1000 WD hitch and sway control designed for 1000 lbs. maximum tongue weight.

6. I will add some ugly pictures of the front frame cross-member. I have already removed the propane tanks, batteries, and the battery disconnect switch, and the junction box (from the cross-member)in preparation for welding repair.

Let me add that I have spoken to Mr. Chuck Bell at Lippert Components, Inc. He told me that indeed my frame had been manufactured by Lippert of Denver, PA based on the VIN number. He said that Sunline developed the specifications for the frame and Lippert built it to their specs. He also stated that Sunline had specified the use of thinner guage front cross-member from 10 GA to 12 GA and that the cross-member was hot formed from sheet steel. He told me that they were trying to make right the problem we are having, but I do not know if, or when this will take place. Some of the repairs in the past were the use of the 1"x2" tube channel steel welded to the cross-member to stiffen it.

I'll try to add the pictures in my next post.
Clarkldc

Thanks you for posting back this info. It is very use full.

Seeing your pics will help add to knowledge base. Yours sounds worse then any we have seen and maybe add more to the understanding of which way the forces are acting.

You said you have a good amount of stuff in the truck bed to keep it out of the camper and a 1,000# WD hitch.

Question: Approx how many pounds of camping gear is aft of the truck axle when you go camping? The WD hitch lifts the gear in the truck bed aft of the rear axle. Even though the tongue may be lighter, the hitch is working as hard lifting the bed load.

Again not questioning/faulting your loading patterns, just trying to figure out where all the forces are coming from that make yours maybe worse then some one towing with a Ford Explorer. Your nice heavy truck can haul stuff, the Ford Explorer can't hold it so that extra WD force does not exist.

Rick said his frame was 0.1" I do not know if he used a caliper or not to measure it.

10 gage mild steel is 0.140" thick

12 gage mild steel is 0.109" thick , Both have mill tolerance but this fits with Rick's 0.1"

Yes please post the pics when you can and anything from Lippert if you can
__________________

__________________
Current Sunlines: 2004 T310SR, 2004 T1950, 2004 T2475, 2007 T2499, 2004 T317SR
Prior Sunlines: 2004 T2499 - Fern Blue
2005 Ford F350 Lariat, 6.8L V10 W/ 4.10 rear axle, CC, Short Bed, SRW. Reese HP trunnion bar hitch W/ HP DC

Google Custom Search For Sunline Owners Club
JohnB is online now   Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Axle/Frame Cracks on our 2499 emam Repairs and Maintenance 14 02-17-2009 09:45 PM
Frame/Axle Cracks on my 2499 emam Repairs and Maintenance 0 01-31-2009 11:31 AM
07 - T2553 - Hitch & noise -- also bent frame.... precorguy Repairs and Maintenance 6 08-10-2008 06:51 PM
Lippert --- Was Bent Cross Member Marylyn Repairs and Maintenance 7 08-09-2008 06:42 AM
Frame Manufacturer for 2006 T-2499 PTHutch Sunline Community 3 06-11-2007 09:18 AM


» Featured Campgrounds

Reviews provided by

Disclaimer:

This website is not affiliated with or endorsed by Sunline RV or any of its affiliates. This is an independent, unofficial site.


Copyright 2002- Social Knowledge, LLC All Rights Reserved.

All times are GMT -6. The time now is 11:27 PM.


×
