Old 07-11-2008, 04:23 PM   #1
Moderator

Tweety's Avatar

Join Date: Dec 2006
Location: Pennsylvania
Posts: 2,262
SUN #128
Tweety
Owners of all nonslide 2005-2007 models please read

There has been a long discussion about the bending and breaking of the front header on several 2499s. You can see pictures here....

http://www.sunlineclub.com/forums/ph...pic.php?t=2123

Since our 2753 has the same frame build, but seems to be fine, I would like to know if anyone with a DIFFERENT model (not 2499) is having problems. So, if ya'll could check your frames and let us know either way that'd be great. I'm hoping for lots of replys that say "no problem with my ####"
__________________

__________________
Pam
Lance 1475 "Snoopy"
2012 GMC Sierra 3500HD 4x4 D/A
2012 Arctic Fox 30U, SUNLINES - 2006 2753 "Tweety", 2007 QUE "QUEtSE", 2364, 1660
Tweety is offline   Reply With Quote
Old 07-11-2008, 08:27 PM   #2
Junior Member

Join Date: Jul 2007
Location: Tennessee
Posts: 16
SUN #358
tnblder48
Front header Bending

After reading all the posts concerning frame problems on the 2499, I went out and inspected my 2006 T1950. After carefull examination,both visually and with a straight edge and tape measure, it appears there is no problem with my particular unit.
I hope there is a speedy, and (inexspensive) solution for those with the problem. One thing is for sure, there are no better people to help in this situation, than those on this site.

Denny & Anne Kerr
tnblder48
__________________

__________________
tnblder48 is offline   Reply With Quote
Old 07-12-2008, 07:47 AM   #3
Moderator

Tweety's Avatar

Join Date: Dec 2006
Location: Pennsylvania
Posts: 2,262
SUN #128
Tweety
Thank you for taking the tme to post. As John B says at the end of the other discussion:


"Gee, this has been an active day. It is great to see everyone come together here. That Sunline spirit lives on even though we have a thunder cloud looming over a few of us.

And more good news is, more info is coming and this helps greatly. I can now see different forces acting in different directions from the breaks/bends and cracks and the evolution of the changes Sunline made. Each bend, crack and lack of tells a story. We need a few more stories yet to help put together the cause. And we need to know where it is not. Tweety’s frame does not have a lot of difference yet we have no reports, yet, of a problem on their model. Something is different. I saw Pam put a post up on frame issues in the Community section. This will help to define where else it is or is not. "
__________________
Pam
Lance 1475 "Snoopy"
2012 GMC Sierra 3500HD 4x4 D/A
2012 Arctic Fox 30U, SUNLINES - 2006 2753 "Tweety", 2007 QUE "QUEtSE", 2364, 1660
Tweety is offline   Reply With Quote
Old 07-12-2008, 09:45 AM   #4
Moderator

PTHutch's Avatar

Join Date: Nov 2006
Location: New York
Posts: 1,799
SUN #98
PTHutch is an unknown quantity at this point
Hi Pam,

Thanks for taking the initiative to make this post.

I think it would be interesting and very helpful if members (both '05+ and earlier model years) with non-slide trailers also looked at their frame / A-frame construction and posted pictures (with our without the problem). Seeing if there is any difference with the material and construction of the pre-'05 models may provide some valuable information to helping understand the situation and identifying a proper fix to it.

Even though we have a ‘05 Slide model with the larger frame (10” I-Beam frame; 10” front cross member; and 6” C-Channel A-Frame), the construction is identical to the T-2499s that are having the bent frame problems. So it seems like at least for the '05 model year, the frame construction was similar for all models, slide and non-slides.

However, the tongue weights of the T-2499s can be similar and in some instances more than the tongue weight of our T-280SR. With the smaller frame of the T-2499s, my guess is that has a lot to do with the current T-2499 owners are seeing.

The '05s have been out for 3+ years now. It's surprising to me that this is the first we've heard of it. I'm wondering if anyone had this problem prior to Sunline closing and if they had Sunline (or their dealer) fix it under warranty.

As others have said, the more information we compile the better off we are.

So hopefully a lot of club members will pitch in with information and pictures of their trailer's A-Frame size and construction.

Hutch
__________________
Mary & Tom (aka Hutch)
2015 Jayco Eagle Premier 361REQS
2014 GMC Sierra 3500HD 4x4 CC D/A
Sunlines: 2005 Solaris T-280SR; 1999 Solaris T-2670; 1998 Saturn T-24A
PTHutch is offline   Reply With Quote
Old 07-12-2008, 09:58 AM   #5
Moderator

Sunline Fan's Avatar

Join Date: Dec 2006
Location: Michigan
Posts: 5,994
SUN #123
Sunline Fan is an unknown quantity at this point
I plan to go measure my windows tomorrow anyway, so I'll get some pics/measurements while I'm at it just to see how different it is from the non-slide coaches in design.

Jon
__________________
2007 T-286SR Cherry/Granola, #6236, original owner, current mileage: 9467.8 (as of 5/26/19)
1997 T-2653 Blue Denim, #5471
1979 12 1/2' MC, Beige & Avocado, #4639
Past Sunlines: '97 T-2653 #5089, '94 T-2251, '86 T-1550, '94 T-2363, '98 T-270SR
Sunline Fan is offline   Reply With Quote
Old 07-14-2008, 08:50 AM   #6
Moderator

Tweety's Avatar

Join Date: Dec 2006
Location: Pennsylvania
Posts: 2,262
SUN #128
Tweety
We heard from a 2553 owner on the repairs and maintanence forum that their frame is fine. I also got a phone call from an additional 2553 owner that their frame is fine. So far we have reports that there are no problems with
1 - 1950
2 - 2553's
1 - 2753
All with the questionable frame/tongue.
__________________
Pam
Lance 1475 "Snoopy"
2012 GMC Sierra 3500HD 4x4 D/A
2012 Arctic Fox 30U, SUNLINES - 2006 2753 "Tweety", 2007 QUE "QUEtSE", 2364, 1660
Tweety is offline   Reply With Quote
Old 07-14-2008, 04:21 PM   #7
Senior Member

Join Date: Sep 2006
Location: California
Posts: 139
SUN #44
SanDimasJoe
T2499 Frame Problem

Tweety,

I have a 2005 2553 model, built in Sept 2004. I don't see any evidence of header or battery support warping/bending. I measured 6" frame and 4" A frame. Header thickness is 1/8", top flange is 2" and bottom flange is 5/8". My tongue weight is between 900 and 950 lbs(battery, propane and 1/3 tank of fresh water.

Joe
__________________
2005 Sunline T2553
2007 Chev 2500HD Duramax/Allison
Hensley Arrow Hitch
SanDimasJoe is offline   Reply With Quote
Old 07-14-2008, 04:37 PM   #8
Senior Member

Join Date: Aug 2007
Posts: 280
SUN #382
Mooney
*phew* I got scared for a minute- you merged the threads while I was at a lengthy response..... luckily it stuck on the other thread.

I will check our '05 2380 (completed 12-21-04) Thursday for visual signs of bends, but I don't wave my measuring devices available....and then post findings here.
__________________
Kelly & Greg Southeast MA
http://i249.photobucket.com/albums/g...hotos006-1.jpg
'04 2500HD Silverado
'05 2380s Solaris Lite, axles flipped
Mooney is offline   Reply With Quote
Old 07-14-2008, 06:03 PM   #9
Senior Member

Join Date: Sep 2006
Location: California
Posts: 139
SUN #44
SanDimasJoe
2499 Frame Problem

I thought I would add pics of the header on my 2553.




__________________
2005 Sunline T2553
2007 Chev 2500HD Duramax/Allison
Hensley Arrow Hitch
SanDimasJoe is offline   Reply With Quote
Old 07-15-2008, 08:43 AM   #10
Moderator

Tweety's Avatar

Join Date: Dec 2006
Location: Pennsylvania
Posts: 2,262
SUN #128
Tweety
Joe,
I would be concerned, as your tongue weight is getting up there. Kitty's, whose frame is bent, weighed in at 975. Just keep an eye on it, since tongue weight is theorized to be the culprit.
__________________
Pam
Lance 1475 "Snoopy"
2012 GMC Sierra 3500HD 4x4 D/A
2012 Arctic Fox 30U, SUNLINES - 2006 2753 "Tweety", 2007 QUE "QUEtSE", 2364, 1660
Tweety is offline   Reply With Quote
Old 07-15-2008, 10:18 PM   #11
Member

Join Date: Mar 2007
Posts: 53
SUN #219
What6308
Send a message via AIM to What6308 Send a message via Yahoo to What6308
I am I to guess correctly that the non-slide models and the slides have a totally different frame style to the structure? And therefore there is nothing to worry about on a slide model?
__________________
---------------------------
'07 What Owner # 6308
What6308 is offline   Reply With Quote
Old 07-16-2008, 12:09 AM   #12
Moderator

JohnB's Avatar

Join Date: Nov 2006
Location: Ohio
Posts: 10,138
SUN #89
JohnB is on a distinguished road
Quote:
Originally Posted by What6308
I am I to guess correctly that the non-slide models and the slides have a totally different frame style to the structure? And therefore there is nothing to worry about on a slide model?

Hutch measured his 2005, T280SR and his camper is a 8,600# GVWR camper.

Tonight I measured my 2004, T310SR a 10,000# GVWR camper and the frame dimensions are the same and no issues have come on either and we both have 1,200# and up tongues.

It does not appear that the 8,600# and up TT's where affected from what we know in 2004/2005.

I did not say slide or not as I do not know what all the lighter weight model slides actually used. If IIRC I asked once from one of our T195SR owners and they had a 10" heavy frame under there and I assume the A frame is heavy to go with it.

It "appears" the 7,000# GVWR non slide frame that looks like what is in these posts is the one of concern that we are trying to see if folks have had any issues with.

As of right now, only the 2005 and forward T2499's seem to be affected. However KathyH and Eman have the latest Sunline design fixes and they seem sound.

A fix will be coming I'm sure. We have too great a TT to not fix it. Bink68 has already had one such fix. So far his is the only one we know of. Before the summer is over, I'm sure more will come. To much camping yet to do.

Hope this helps

John

PS Hutch, the header is 11 gage (0.120”)
__________________
Current Sunlines: 2004 T310SR, 2004 T1950, 2004 T2475, 2007 T2499, 2004 T317SR
Prior Sunlines: 2004 T2499 - Fern Blue
2005 Ford F350 Lariat, 6.8L V10 W/ 4.10 rear axle, CC, Short Bed, SRW. Reese HP trunnion bar hitch W/ HP DC

Google Custom Search For Sunline Owners Club
JohnB is offline   Reply With Quote
Old 07-16-2008, 07:04 AM   #13
Member

Join Date: Mar 2007
Posts: 53
SUN #219
What6308
Send a message via AIM to What6308 Send a message via Yahoo to What6308
John, thanks for that insight.
__________________
---------------------------
'07 What Owner # 6308
What6308 is offline   Reply With Quote
Old 07-16-2008, 09:16 AM   #14
Senior Member

Join Date: Oct 2006
Posts: 110
SUN #83
Both2Retired
T2753 - No faults, yet

I checked my 2007 T2753 and I could find not signs of bending or twisting, YET. I will be very interested in what others determine to be the causes and what can be done to prevent damage. Thanks to all of you for helping all of us.

When a "fix" is determined, I hope it will come to all of us as a new post.
__________________
John & Jeanne
2007 Sunline T-2753
2010 Dodge RAM 1500 SLT Crew Cab 4X4
5.7-Liter V8 Hemi
5-speed auto
Both2Retired is offline   Reply With Quote
Old 07-16-2008, 10:38 PM   #15
Senior Member

Join Date: Dec 2006
Location: Pennsylvania
Posts: 272
SUN #139
Al in PA
I took a close look at our 2553. So far there is no sign of a problem. Ours is a 2007 model.
__________________
Al
1985 T-1550
1993 T-2051
2007 T-2553
2003 Silverado 1500
Al in PA is offline   Reply With Quote
Old 07-18-2008, 01:28 PM   #16
Moderator

Tweety's Avatar

Join Date: Dec 2006
Location: Pennsylvania
Posts: 2,262
SUN #128
Tweety
I am losing track of replies, as they have come in on different discussions, and even over the phone! I'm going to keep track of them all here and just edit this post as needed.
Latest edit date 8/6

1950 - 2006 - OK

2075 - 2007 - 2 OK

2363 -2006 - 1 DAMAGED
2007 - 1 DAMAGED

2553 - 2006 - 2 OK, 1 questionable
2007 - OK

2753 - 2005 - OK
2006 - OK
2007 - OK
__________________
Pam
Lance 1475 "Snoopy"
2012 GMC Sierra 3500HD 4x4 D/A
2012 Arctic Fox 30U, SUNLINES - 2006 2753 "Tweety", 2007 QUE "QUEtSE", 2364, 1660
Tweety is offline   Reply With Quote
Old 07-22-2008, 01:40 PM   #17
Member

Join Date: Jan 2007
Posts: 66
SUN #172
luckyva
Geez...

this is awful. i think the header on my 2363 is bowed. actually, i know it is.

thank goodness for this site. having read about the problem, in detail (!), i can at least be proactive in monitoring it.

what a mess!

thanks to everyone for their posts. i have some idea how to deal with it when the time comes.

if i knew how to post a picture here, i would and y'all could access.

also, i have an extended warranty with rt 66. course, they would probably deny there is a problem at this time.......
__________________
Paul
2006 Ford F-150 Lariart 4X4
2007 Sunline Solaris T-2363
luckyva is offline   Reply With Quote
Old 07-23-2008, 11:06 AM   #18
Senior Member

Join Date: Sep 2006
Location: Ontario
Posts: 503
SUN #43
Trailblazer is an unknown quantity at this point
I have responded on the thread in the Repairs forum and then noticed this thread. We have a 2005 T2753 Sunline. We have towed it approximately 10,000 miles and so far we have no sign of any bending on our trailer frame.
__________________
Trailblazer is offline   Reply With Quote
Old 07-23-2008, 07:40 PM   #19
Senior Member

Join Date: Sep 2007
Posts: 194
SUN #408
partimcmpr
T2553 Frame status

I am not sure if I have the early stages of the problem or not. Here are some pictures and information on my coach.

My coach was built in August 2005.

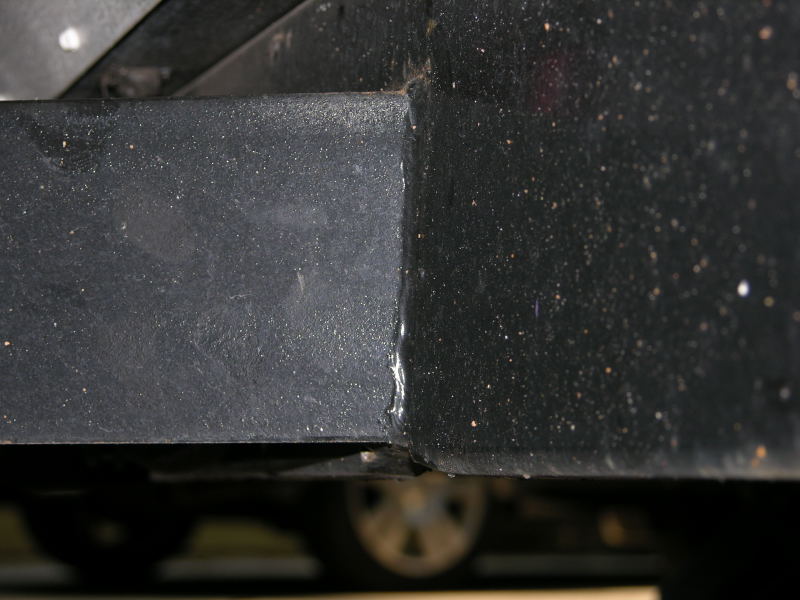

Here are some pictures showing what my frame looks like.

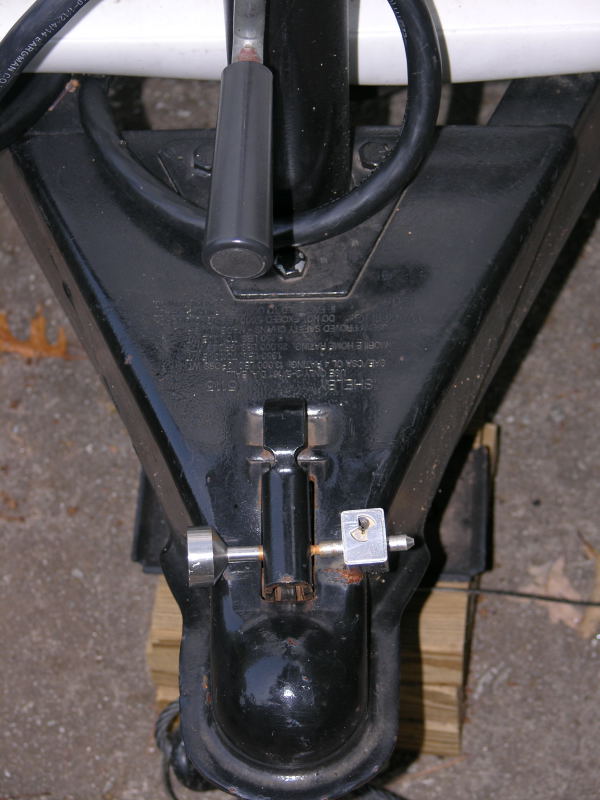

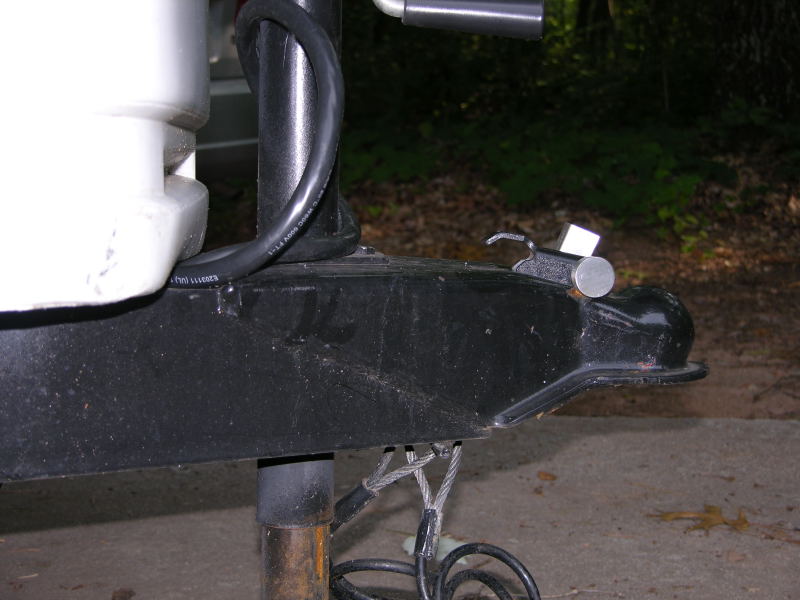

Hitch

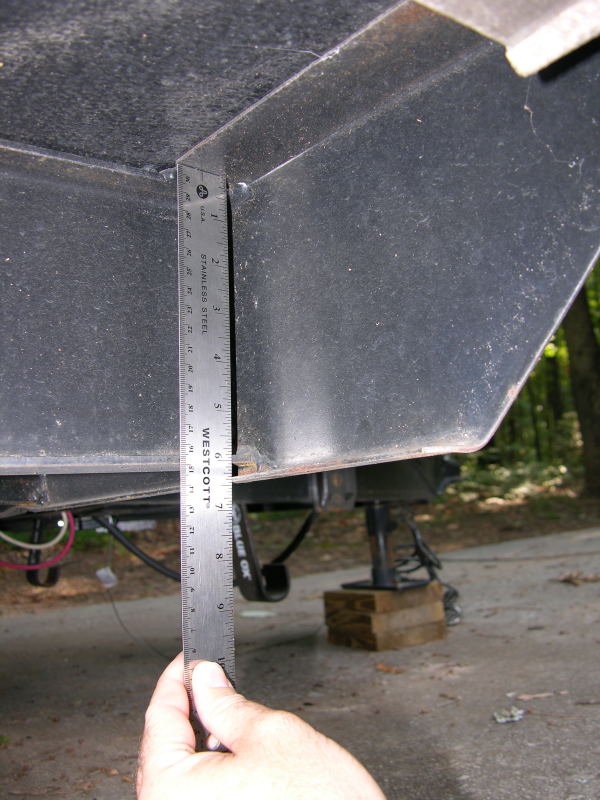

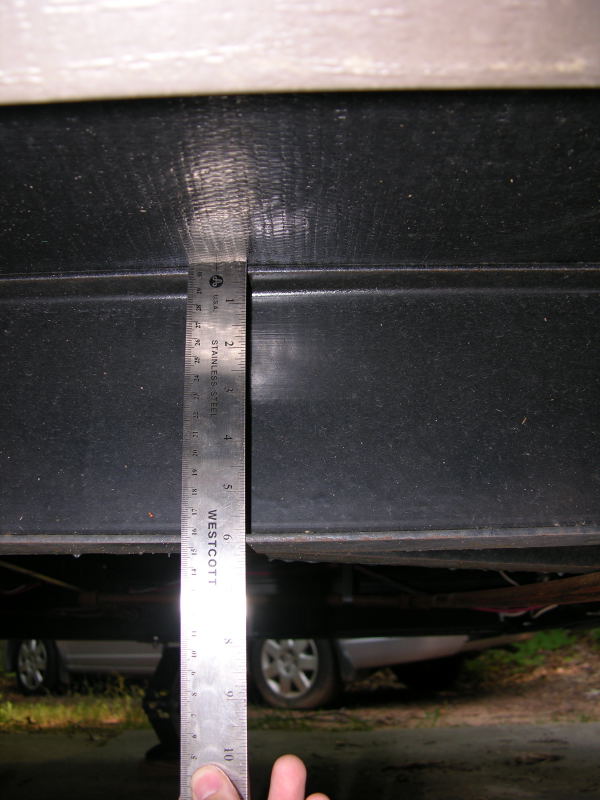

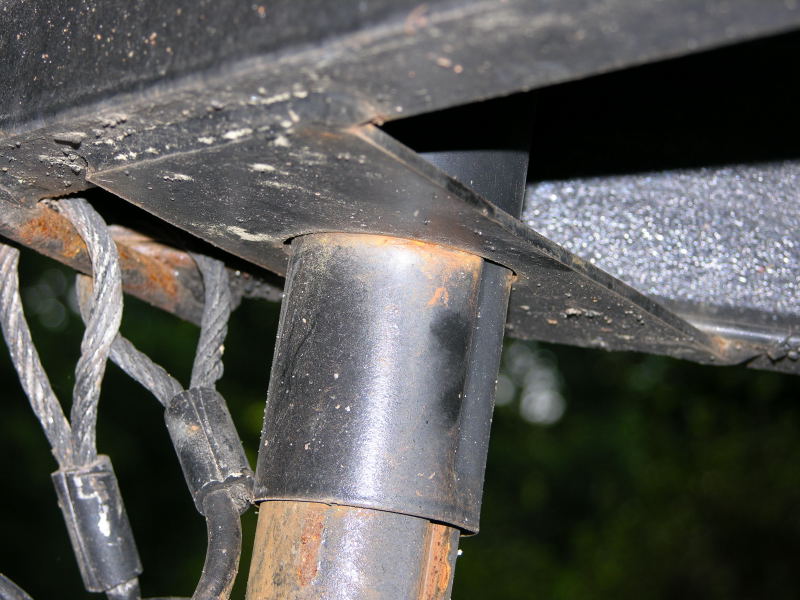

A Frame pictures

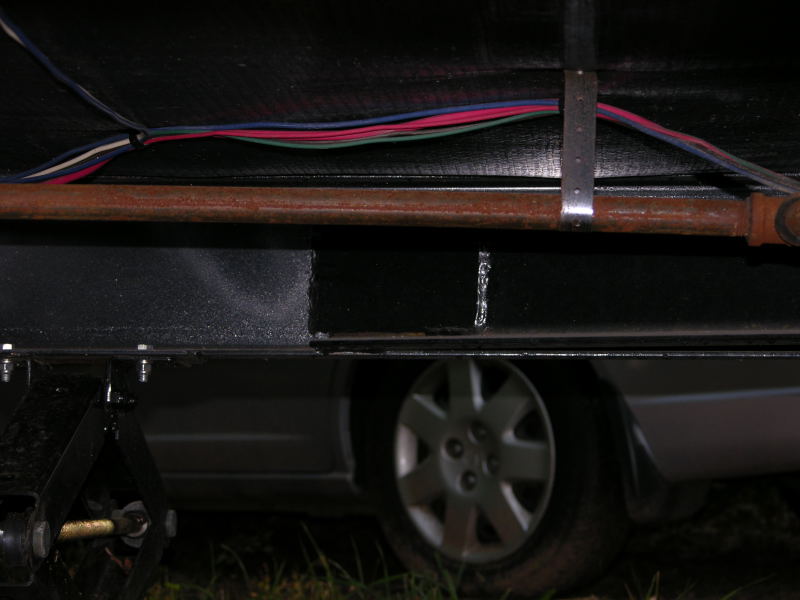

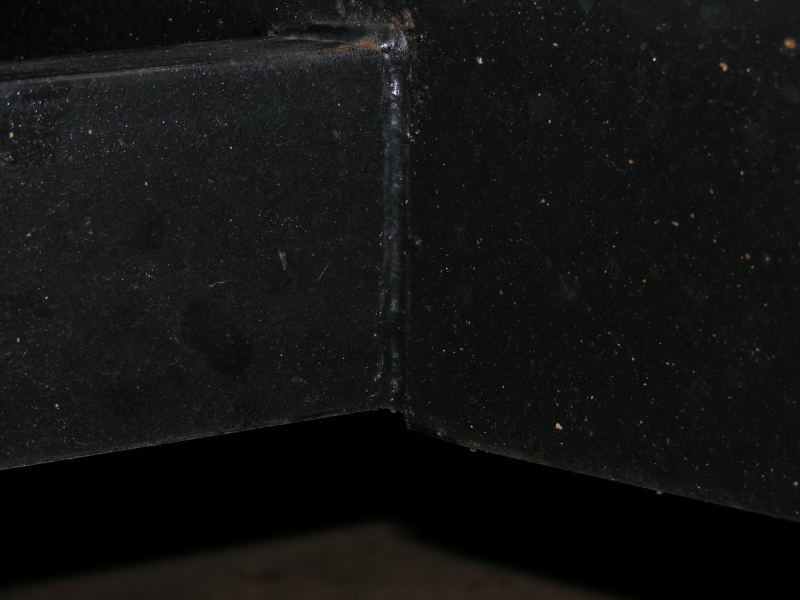

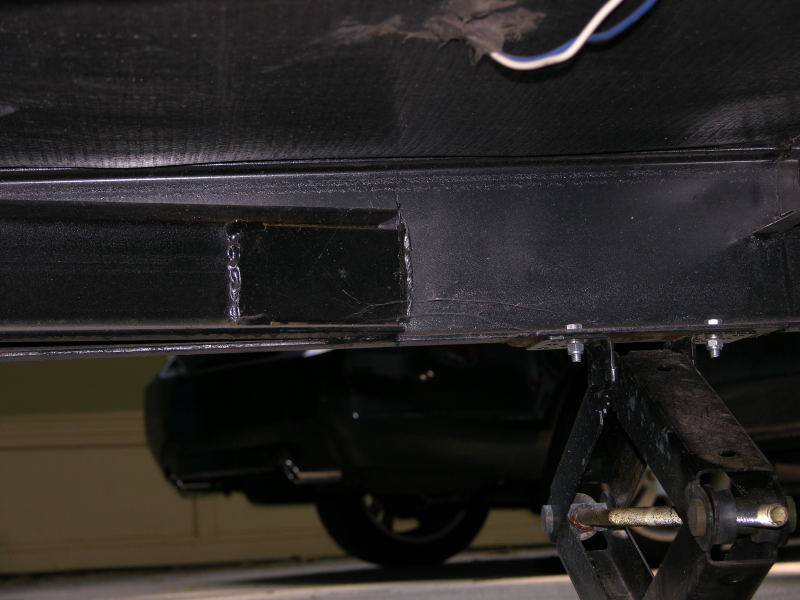

Frame Construction

__________________
Cherie & David
Fayetteville, Georgia
2008 Chevrolet 2500HD D/A
2006 Sunline T2553 Classic
http://dbmcbride.com/stttv.gif
partimcmpr is offline   Reply With Quote
Old 07-24-2008, 10:07 PM   #20
Moderator

JohnB's Avatar

Join Date: Nov 2006
Location: Ohio
Posts: 10,138
SUN #89
JohnB is on a distinguished road
David

Pull a string tight across the header or use a long straight edge. The pic may be an illusion or you have the beginning of a problem.

Thanks

John
__________________

__________________
Current Sunlines: 2004 T310SR, 2004 T1950, 2004 T2475, 2007 T2499, 2004 T317SR
Prior Sunlines: 2004 T2499 - Fern Blue
2005 Ford F350 Lariat, 6.8L V10 W/ 4.10 rear axle, CC, Short Bed, SRW. Reese HP trunnion bar hitch W/ HP DC

Google Custom Search For Sunline Owners Club
JohnB is offline   Reply With Quote
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Question for 2004/2005 Sunline Owners sewfancy Sunline Community 21 05-05-2011 05:02 PM
Please Read First Before Posting PTHutch Eats on the Road 0 02-11-2010 11:49 AM
Side or Read Door Honda03842 Sunline Que 4 05-10-2009 09:51 PM
Solaris 19-21 ft models nickster60 Sunline Travel Trailers 15 06-01-2007 07:48 AM
more bunk models with slideouts sunnyseagull Sunline Community 1 10-08-2006 07:02 PM


» Featured Campgrounds

Reviews provided by

Disclaimer:

This website is not affiliated with or endorsed by Sunline RV or any of its affiliates. This is an independent, unofficial site.


Copyright 2002- Social Knowledge, LLC All Rights Reserved.

All times are GMT -6. The time now is 07:25 PM.


×
